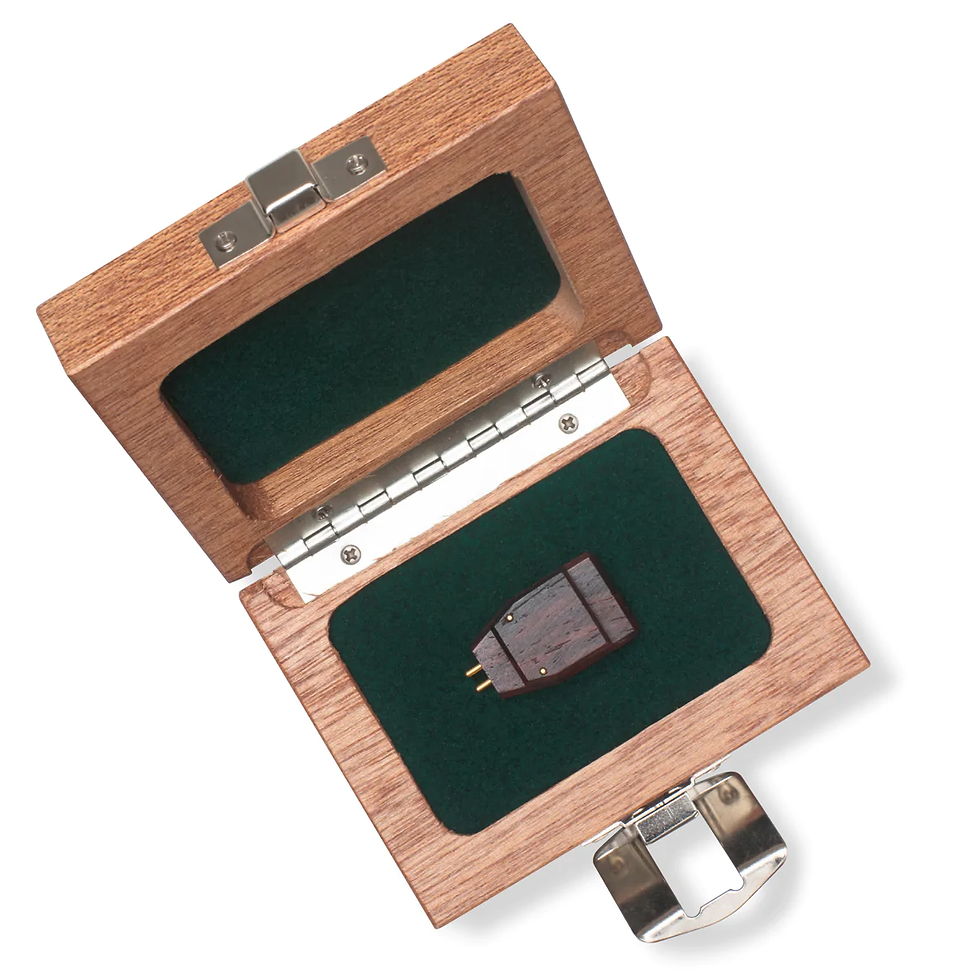

Grado Master 3 Cartridge

Grado Master 3 Cartridge

The Master3 and Reference3 models use a five piece OTL cantilever technology achieving an additional 5% tip mass reduction over the Platinum3 and Sonata3 models. The coils are wound with ultra-high purity long crystal (UHPLC) oxygen free copper wire. The Master3 model is mounted with Grado's specially designed nude elliptical diamond, and the Reference3 model uses Grado's true ellipsoid design diamond. These cartridges are individually calibrated.

  • Specifications

    Body: Australian Jarrah Wood

    Cantileaver: Machined Boron / Diamond Tip

    Output:
    High 4.0mV @5 CMV (45)
    Low 1.0mV @5 CMV (45)

    Inductance:
    High Output 55mH
    Low Output 6mH

    Resistance:
    High Output 660 ohms
    Low Output 70 ohms

    Input Load: 10k-47k ohms

    Cartridge Weight: 10 grams

    Tracking Force: 1.6-1.9 grams

    Compliance 20μm/mN

    Channel Separation: Average 30db - 10-30k Hz

    Controlled Frequency Response: 10-60 KHz

    Non-Sensative to Capacitive Load

    Builds: High Output, Low Output, Mono

  • South East Asia Availability

    The Timbre Series of Cartridges are available for custom order in either HIGH OUTPUT or LOW OUTPUT versions. They are also available in HIGH OUTPUT or LOW OUTPUT MONO configurations. Please contact sales@v2point0.net and enquire about the lead time to delivery.

$1,499.00Price
